1st Attack Engineering

Brush Rescue Truck Features/ Options

Brush Rescue Conversion:

Bed unit outer frame shall be built from 2″ o.d. D.O.M. 120 wall steel tubing, bent to form roll bar, light bar mounting area, fenders, steps and rear bumper; center frame shall have 2x2x1/8 square steel cross members with 2×1/8 angle types fenders and floor shall be diamond tread plate aluminum rolled to form fenders, steps and tail light panel. All steel components are sandblasted, exhaled, primed,painted base/clear with aluminum and stainless fasteners on all cosmetic components with grade 8 steel fasteners on all structured components.
  • driver rear corner- Summit Station
  • passenger side- Summit Station
  • passenger side view- Summit Station
  • passenger front corner- Summit Station
  • passenger profile view- Fort AP Hill 105
  • passenger front corner- Fort AP Hill 105
  • bed conversion- Fort AP Hill 105

Front Brush Guard:

A custom stainless steel tubular front brush guard with aluminum diamond plate skid plate to help protect the front grill of truck.  Options: 2″ receiver hitch, permanent mount winch, ground sweep nozzles, front remote control monitor, and LED lighting. Click here to watch video

  • Greenup Fire Department custom brush fire truck
  • Jefferson Fire Department front angle
  • Nozzles on front brush guard spraying water
  • passenger side view of winch
  • front brush guard with spray monitor
  • front brush guard straight on view
  • front bumper- Florence Township Fire Department
  • front brush guard spraying water
  • monitor specs

Winch:

A winch  can be mounted and wired to the place/ places specified by the department.
  • winch on side platform
  • close up of winch on front brush guard
  • winch mounted on front brush guard- North Boone
  • winch mounted in rear reciever hitch

Lettering/ Striping:

Custom lettering and striping can be provided on the door, windshield, hood, and bed.
  • reflective red and white striping
  • lettering- Bucyrus Township Fire Department

Interior Options:

Console:

A center console can be included between the front seats with spots for binder tray, radio, and/or front monitor remote. Click here to watch video

  • Jefferson Fire Department custom center console
  • Greenup Fire Department yellow customized center console
  • aluminum center console form passenger side
  • center console from driver side
  • center console- Russellville
  • center console- Saint Anne

Backseat :

The backseat can be converted into a rear air pack seat/ shelving/ a winch carrier/ an air pack rack/ a co-poly storage box.
  • back seat co-poly shelving
  • interior back seat, driver side
  • winch in back seat
  • aluminum shelving in back seat
  • air pack rear interior seats
  • air pack holders in back seat

Tank:

A  custom copolymer fabricated NFPA baffled tank with or without 8” under tank storage. The fill tower will be located in the front or back of tank.
  • co-poly water tank
  • plastic co-polymer tank
  • #104 Eagles Mere Vol. Fire Dept.
  • Specs on Foam system
  • APR co-polymer tank specs
  • APR tank warranty

Pump:

The specified pump can be mounted in the rear of the truck and can be plumped directly to the fuel tank on the chassis.
  • Darley Davey Pump 13 HP
  • 13 HP Darley Davey Pump
  • Darley 2BE Pump
  • 23 HP Darley 2BE
  • Darley 2BE Pump
  • John Deere Diesel Pump
  • Lombardini- pump
  • Lombardini- pump

Scotty Around the Pump:

A Scotty Around the  Pump can be added to the tank and pump.
  • pump on Janesville truck

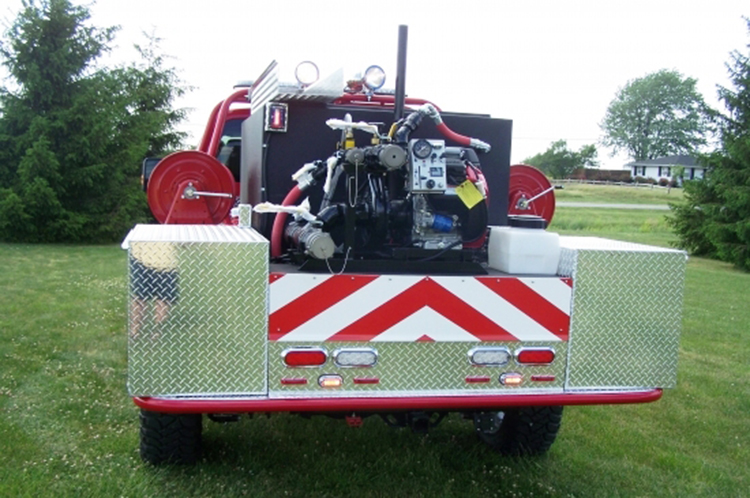

  • rear and pump view- Summit Station

Hose Reels/ Hoses/ Hose Bed/ Nozzles:

Electric rewind or manual rewind hose reels can be added with the specified hose and nozzles.
  • rear passenger super single
  • super single rims on snow
  • plastic co-polymer tank
  • Co-poly electric hose reel
  • Hose reel- electric from side
  • hose beds- Dallas

Custom Tool Storage Boxes:

Custom storage boxes can be added to the customers needs.
  • open storage boxes- bed conversion
  • storage boxes at night
  • box light up at night with hose reel

Stokes Basket Carrier:

A stokes basket carrier can be mounted on the passenger side, rear on truck, on top of tank, or in a transverse compartment.
  • stokes basket carrier on side of truck
  • rear stokes basket carrier
  • Rear reciever hitch stokes basket carrier
  • Under tank storage area can hold a stokes basket
  • rear passenger super single

Emergency Lighting:
  • light bar on Summit Station
  • light bar on Eagles Mere
  • red light on hood- Wabash
  • red light in brush guard- Wabash
  • rear lights- Wabash

Scene Lighting:
  • light on brush guard
  • light on Wabash truck
  • pole light on Wabash truck
  • pole light on Wabash
  • passenger side front- Otterbein
  • rear driver corner- Roxand

Suspension Lift:
  • #105 Fort AP Hill
  • passenger front corner- Summit Station
  • side passenger- Huntington

Wheels & Tires:
  • Tire mounting and balancing machine
  • Mickey Thompson Baja Claw
  • Mickey Thompson Baja MTZ tire on Super Single Wheels
  • Mickey Thompson Baja MTZ Tires on Super Single Wheels
